A steel strut connection is mounted to a concrete wall via an embedded steel plate assembly. The connection utilizes a 12-inch by 6-inch by 3/8-inch embed plate labeled P-6, anchored with reinforcing bars and tied into surrounding framing by others. Additional plate elements measuring 1/2-inch by 8-inch by 2-foot-4-inch and 3/4-inch by plate thickness by 2-foot-4-inch incorporate ten number 6 bars, 54 inches long, welded with typical quarter-inch fillet welds. Expanded polystyrene insulation is removed locally to provide a 1-inch clearance around the assembly, accompanied by three number 4 U-bars and surface reinforcing mesh continued behind the connection. Number 6 bars are provided at each dowel bar anchor to lap for continuous reinforcing between connections.

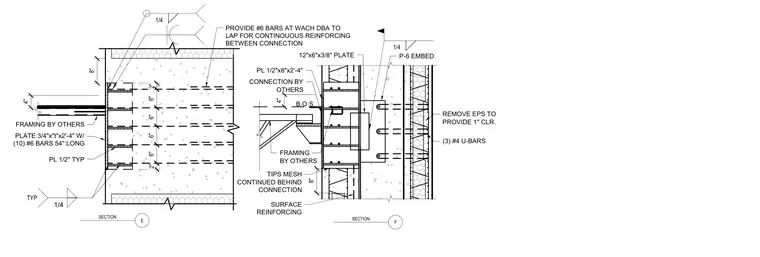

4" 2" 1/4 TYP E SECTION PLATE 3/4"x"t"x2'-4" W/ (10) #6 BARS 54" LONG PL 1/2" TYP 4" F SECTION PL 1/2"x8"x2'-4" B.O.S. P-6 EMBED 12"x6"x3/8" PLATE FRAMING BY OTHERS 1/4 2" REMOVE EPS TO PROVIDE 1" CLR. (3) #4 U-BARS FRAMING BY OTHERS CONNECTION BY OTHERS 8" TIPS MESH CONTINUED BEHIND CONNECTION 1/4 8" 6" 6" 6" 6" PROVIDE #6 BARS AT WACH DBA TO LAP FOR CONTINOUOUS REINFORCING BETWEEN CONNECTION SURFACE REINFORCING
