Projection Screen Ceiling Mounted Detail

Materials

Concrete Steel Metal (misc.)

Elements

Ceilings Decks Bracing Anchors / Embeds Connections / Plates

Connections

Bolted Connection

About this detail

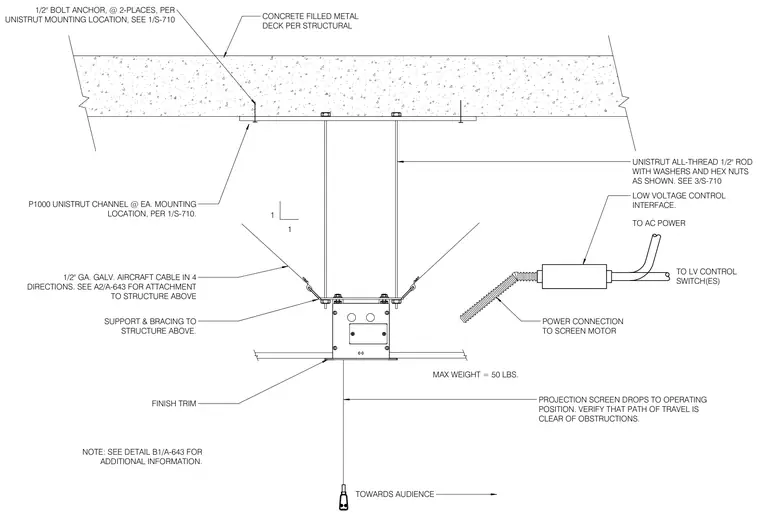

A ceiling-mounted projection screen suspends from a concrete-filled metal deck. The assembly hangs from P1000 Unistrut channels secured to the deck above with half-inch bolt anchors at two places per mounting location. Half-inch all-thread rods with washers and hex nuts support the screen housing, supplemented by half-gauge galvanized aircraft cables running in four directions for lateral bracing. A low voltage control interface connects to the screen motor and links to AC power and low voltage control switches. The projection screen drops to its operating position with a maximum weight of fifty pounds, requiring verification that the path of travel remains clear of obstructions.
