This detail specifies a standard data outlet assembly featuring three Category 6A cables terminated on RJ-45 jacks at the faceplate. Blank inserts are provided for spare jack locations. The outlet is mounted at plus eighteen inches above the finished floor unless otherwise noted.

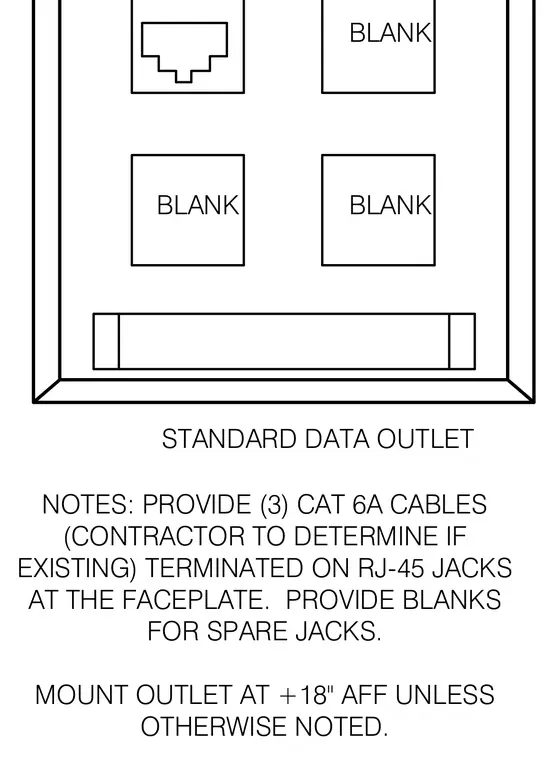

STANDARD DATA OUTLET BLANK BLANK BLANK NOTES: PROVIDE (3) CAT 6A CABLES (CONTRACTOR TO DETERMINE IF EXISTING) TERMINATED ON RJ-45 JACKS AT THE FACEPLATE. PROVIDE BLANKS FOR SPARE JACKS. MOUNT OUTLET AT +18" AFF UNLESS OTHERWISE NOTED.
