Cat 6 rated cable support clips are attached to a wall or ceiling structure using two number twelve by one inch screws into wood studs. The J-hook accommodates a maximum fill of ninety four-pair cables or two hundred ninety four-pair cables for triangle hooks, maintaining a minimum six inch clearance mid-span to the ceiling. Velcro straps are placed in the closure holes upon completion of the cable installation, positioned so they do not physically contact the cables. Maximum spacing between supports is three to five feet.

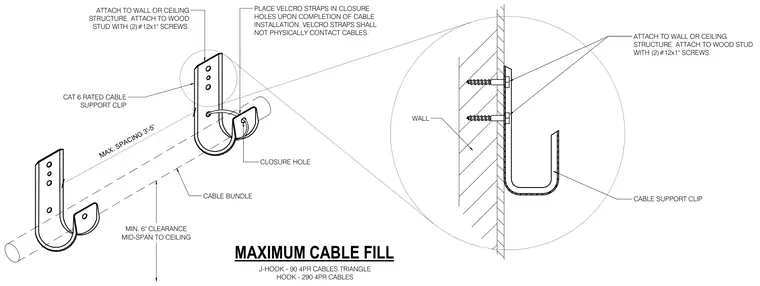

CABLE SUPPORT CLIP WALL ATTACH TO WALL OR CEILING STRUCTURE. ATTACH TO WOOD STUD WITH (2)#12x1" SCREWS. CLOSURE HOLE MAXIMUM CABLE FILL J-HOOK - 90 4PR CABLES TRIANGLE HOOK - 290 4PR CABLES MIN. 6" CLEARANCE MID-SPAN TO CEILING CABLE BUNDLE CAT 6 RATED CABLE SUPPORT CLIP ATTACH TO WALL OR CEILING STRUCTURE. ATTACH TO WOOD STUD WITH (2)#12x1" SCREWS. PLACE VELCRO STRAPS IN CLOSURE HOLES UPON COMPLETION OF CABLE INSTALLATION. VELCRO STRAPS SHALL NOT PHYSICALLY CONTACT CABLES. MAX. SPACING 3'-5'
