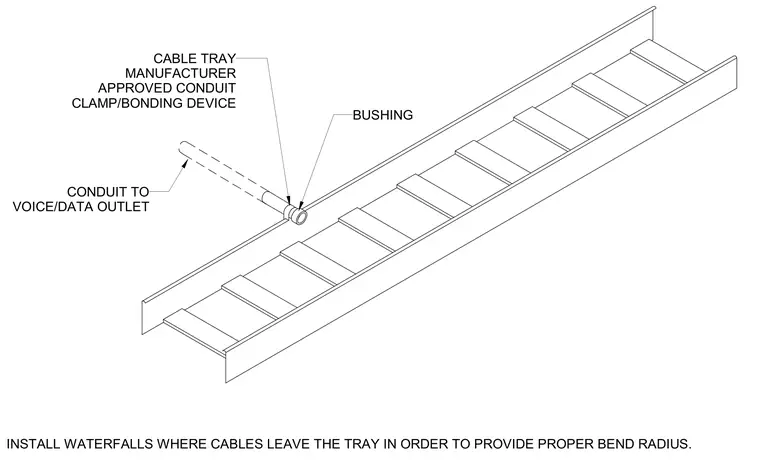

A conduit routing to a voice and data outlet connects to a ladder-type cable tray using a manufacturer-approved conduit clamp and bonding device. A bushing terminates the conduit connection at the tray rail. Waterfalls are installed where cables leave the tray in order to provide proper bend radius.
CONDUIT TO VOICE/DATA OUTLET CABLE TRAY MANUFACTURER APPROVED CONDUIT CLAMP/BONDING DEVICE BUSHING INSTALL WATERFALLS WHERE CABLES LEAVE THE TRAY IN ORDER TO PROVIDE PROPER BEND RADIUS.
