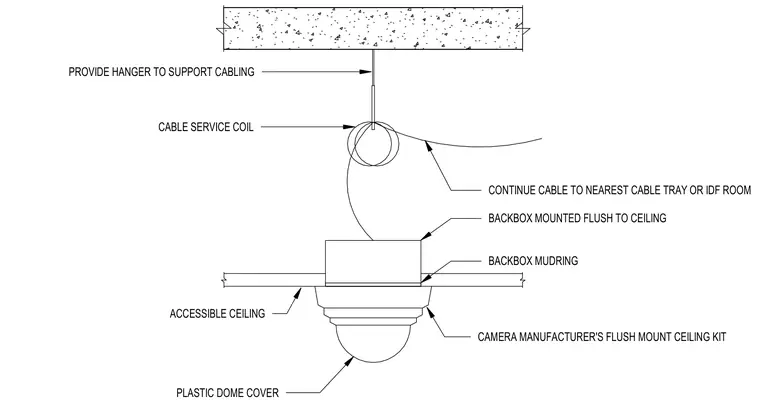

An interior security camera is mounted flush to an accessible ceiling using the manufacturer's flush mount ceiling kit and a plastic dome cover. The backbox is installed flush with the ceiling plane using a backbox mudring. Cabling runs from the unit into a cable service coil, supported above by an independent hanger before continuing to the nearest cable tray or intermediate distribution frame room.
PLASTIC DOME COVER ACCESSIBLE CEILING CAMERA MANUFACTURER'S FLUSH MOUNT CEILING KIT CONTINUE CABLE TO NEAREST CABLE TRAY OR IDF ROOM CABLE SERVICE COIL PROVIDE HANGER TO SUPPORT CABLING BACKBOX MOUNTED FLUSH TO CEILING BACKBOX MUDRING
