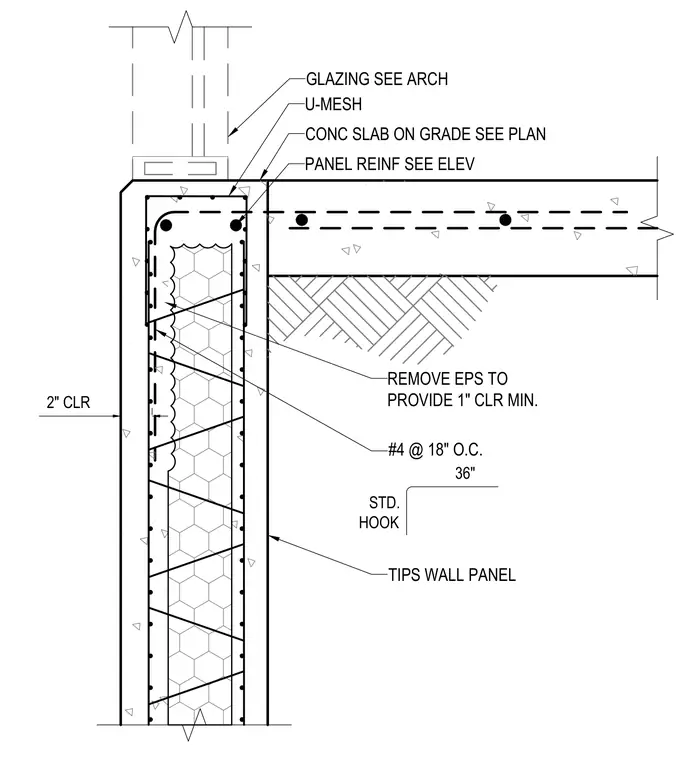

A concrete slab on grade meets an insulated wall panel featuring EPS insulation and a two-inch concrete clearance. Wall panel reinforcement includes number four vertical bars spaced at eighteen inches on center with standard hooks measuring thirty-six inches. Expanded polystyrene insulation is removed adjacent to the slab junction to provide a minimum one-inch clearance. A U-mesh reinforcing detail ties the concrete slab to the wall panel top. Glass and glazing systems sit above the concrete wall panel per architectural drawings.
STD. HOOK 36" 2" CLR U-MESH TIPS WALL PANEL PANEL REINF SEE ELEV CONC SLAB ON GRADE SEE PLAN GLAZING SEE ARCH REMOVE EPS TO PROVIDE 1" CLR MIN. #4 @ 18" O.C.
