Telecommunications · T-Z6CSN

J-Hook and Cable Tray Routing Section Detail

Materials

Timber / Wood

Elements

Walls Ceilings Floors / Slabs Reinforcing

Connections

Rebar Splice / Development

About this detail

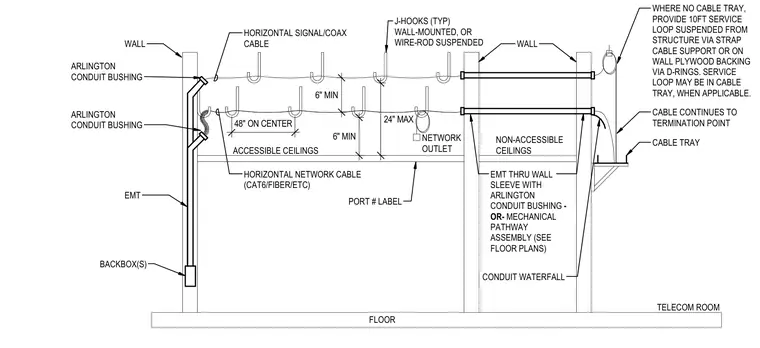

Horizontal signal, coaxial, and network cables including Cat6 and fiber are routed through wall-mounted or wire-rod suspended J-hooks spaced at forty-eight inches on center maximum with a minimum six-inch vertical clearance. The cabling transitions through electrical metallic tubing sleeves equipped with Arlington conduit bushings at wall penetrations or via a conduit waterfall into cable trays. Accessible and non-accessible ceiling spaces integrate backboxes and EMT conduits extending down to wall outlets, while areas lacking cable trays incorporate a ten-foot service loop suspended from the structure via strap cable support or D-rings on plywood backing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
