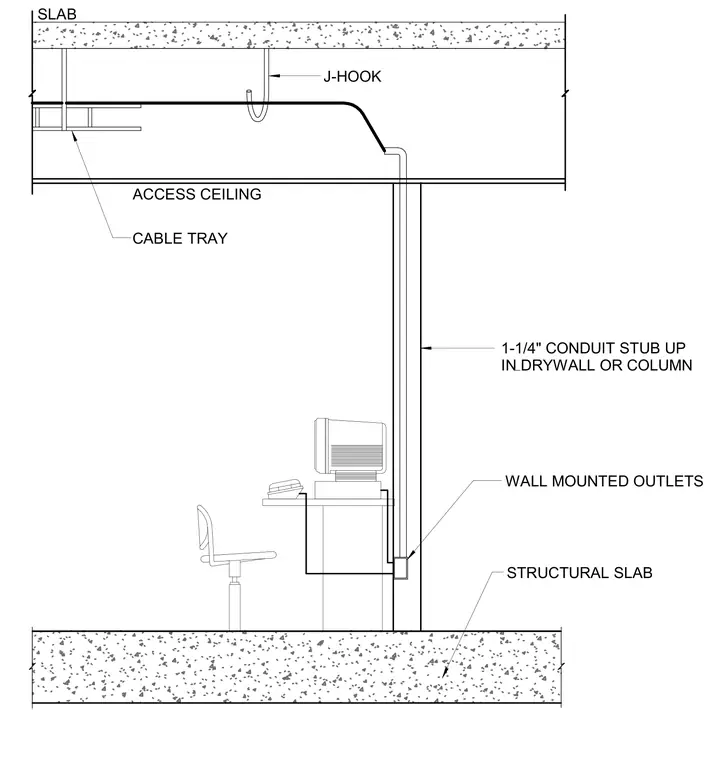

Cables run along an overhead cable tray supported by J-hooks suspended from the structural slab above an access ceiling. A one-and-a-quarter-inch conduit stub-up routes cables down through the drywall or column to wall-mounted outlets near the structural slab. The cabling connects to office workstations positioned against the wall.
STRUCTURAL SLAB ACCESS CEILING SLAB WALL MOUNTED OUTLETS 1-1/4" CONDUIT STUB UP IN DRYWALL OR COLUMN CABLE TRAY J-HOOK
