Telecommunications · T-YR2R4

Single Leaf Door Access Control Security Elevation

Elements

About this detail

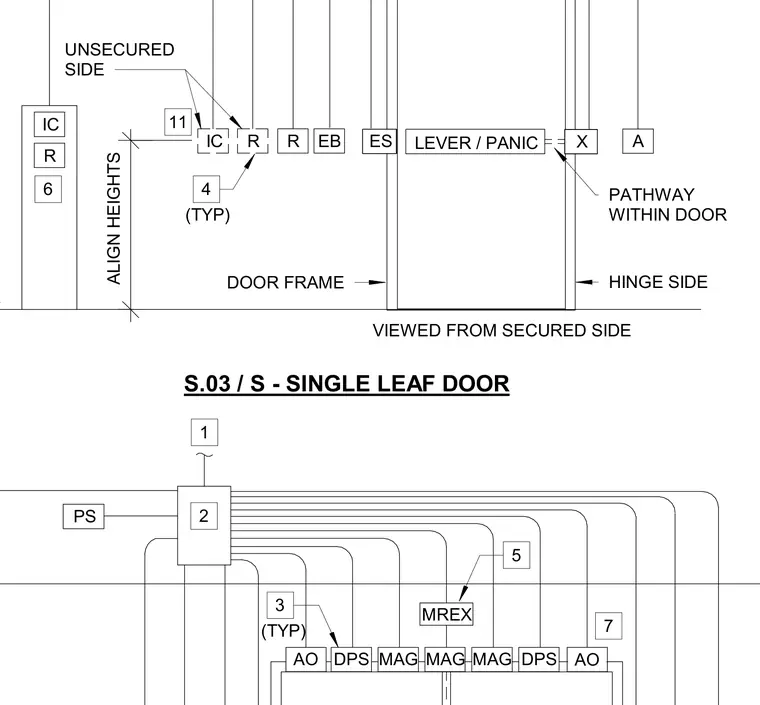

This elevation shows the device placement and wiring pathways for an access control system on a single leaf door. The drawing details component locations relative to the door frame, including lever panic hardware, request-to-exit devices, magnetic locks, door position switches, and card readers. Aligned height dimensions and conduit routing paths connect field devices back to the door controller.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
