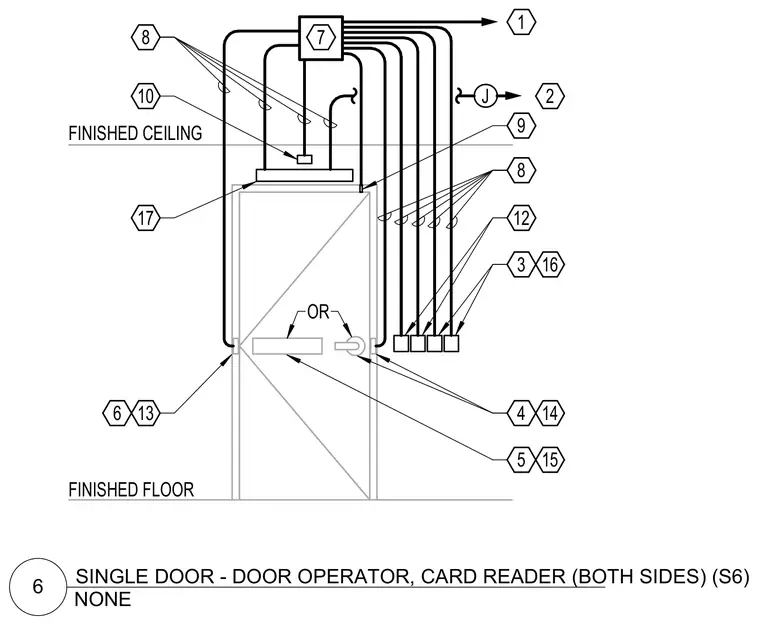

A single door installation is equipped with an overhead door operator, a door contact, and card readers on both sides. Conduit runs from a junction box to wall-mounted devices, a push button, and electric hardware at the door frame and leaf. Finished floor and finished ceiling lines establish vertical reference elevations for the conduit drops.
J 2 3 1 OR 4 5 13 7 8 8 9 FINISHED FLOOR FINISHED CEILING 6 14 15 16 12 17 10 NONE 6 SINGLE DOOR - DOOR OPERATOR, CARD READER (BOTH SIDES) (S6)
