A truss seat connection located near a panel joint is anchored with three-quarter-inch diameter by five-inch embed anchor bolts set inside thirteen-sixteenths-inch by two-inch horizontal slotted holes with double nuts tightened finger-tight only. Four anchor bolts are placed on each side of the continuous ledger, positioned at the center of the slotted holes. Expanded polystyrene is removed the full length of the ledger, which is supported alongside vertical reinforcing and U-mesh as specified per plan.

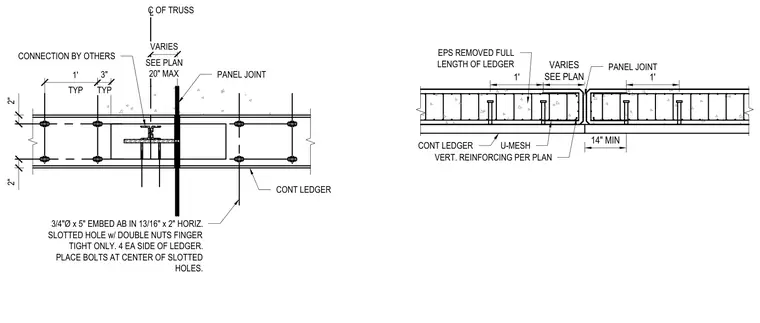

C OF TRUSS 2" 2" L VARIES SEE PLAN 20" MAX 1' TYP 3" TYP CONNECTION BY OTHERS PANEL JOINT CONT LEDGER 3/4"Ø x 5" EMBED AB IN 13/16" x 2" HORIZ. SLOTTED HOLE w/ DOUBLE NUTS FINGER TIGHT ONLY. 4 EA SIDE OF LEDGER. PLACE BOLTS AT CENTER OF SLOTTED HOLES. CONT LEDGER EPS REMOVED FULL LENGTH OF LEDGER PANEL JOINT U-MESH 1' 1' VARIES SEE PLAN 14" MIN VERT. REINFORCING PER PLAN
