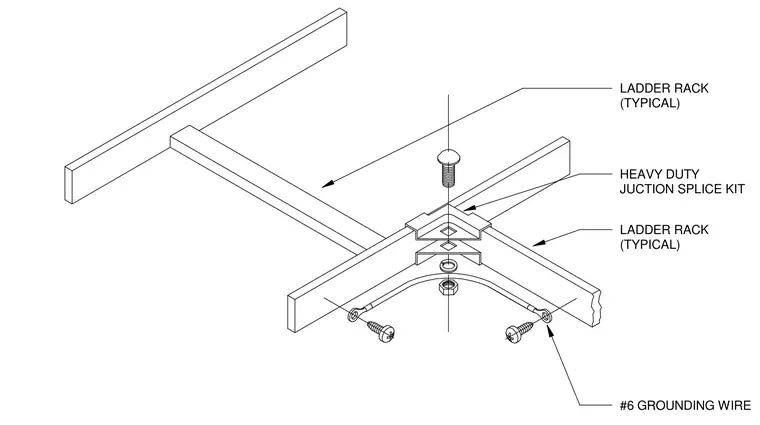

Two typical ladder racks meet at a junction secured with a heavy duty junction splice kit, bolts, washers, and nuts. A number six grounding wire with terminal lugs attaches to the ladder rack side rails using grounding screws to maintain electrical continuity across the splice.
LADDER RACK (TYPICAL) HEAVY DUTY JUCTION SPLICE KIT LADDER RACK (TYPICAL) #6 GROUNDING WIRE
