Typical Signal System Wiring Diagram

Elements

About this detail

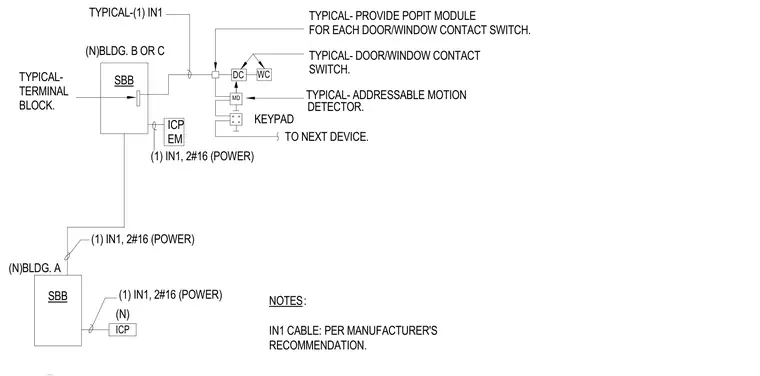

Typical signal system wiring connections run between buildings, terminal blocks, and security devices. A terminal block feeds into signal junction boxes located in new buildings A, B, or C using IN1 cables and two #16 power conductors. Each door and window contact switch requires a POPIT module linked through a local control point. Addressable motion detectors and keypads tie into the circuit, which continues onward to the next device. Cable specifications for IN1 follow the manufacturer's recommendations.
