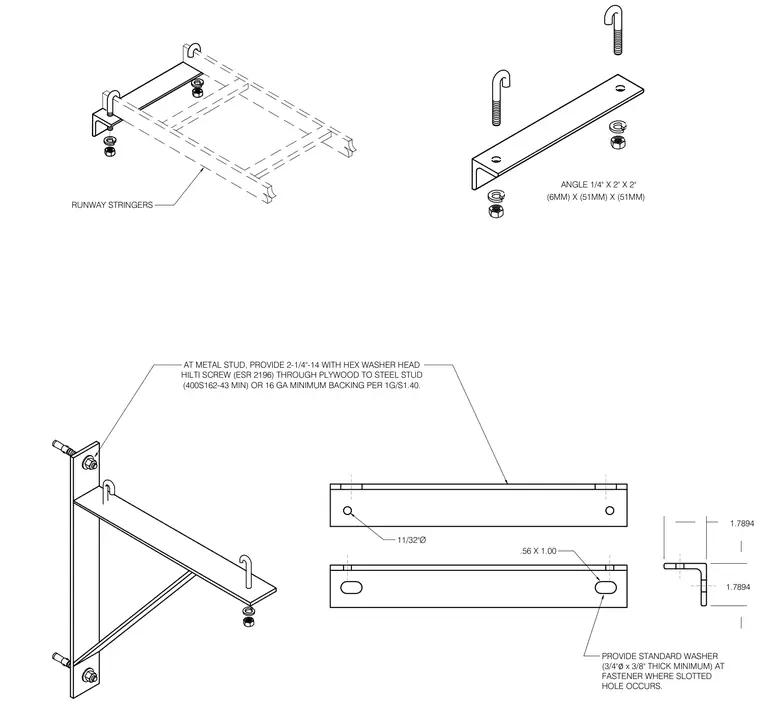

A cable runway wall support assembly consists of a structural steel angle bracket fastened to metal stud walls. The angle measures one-quarter inch by two inches by two inches and features drilled and slotted holes secured with standard washers, lock washers, and nuts. At metal stud locations, the assembly requires two-and-a-quarter inch by fourteen hex washer head Hilti screws installed through plywood into a minimum forty-three mil steel stud or sixteen gauge steel backing. J-bolts secure the cable runway stringers to the support angle.
AT METAL STUD, PROVIDE 2-1/4"-14 WITH HEX WASHER HEAD HILTI SCREW (ESR 2196) THROUGH PLYWOOD TO STEEL STUD (400S162-43 MIN) OR 16 GA MINIMUM BACKING PER 1G/S1.40. RUNWAY STRINGERS ANGLE 1/4" X 2" X 2" (6MM) X (51MM) X (51MM) 11/32"Ø 1.7894 1.7894 .56 X 1.00 PROVIDE STANDARD WASHER (3/4" ∅ x 3/8" THICK MINIMUM) AT FASTENER WHERE SLOTTED HOLE OCCURS.
