Telecommunications · T-YAKNP

IP Ceiling Speaker Connection Detail

Materials

Elements

About this detail

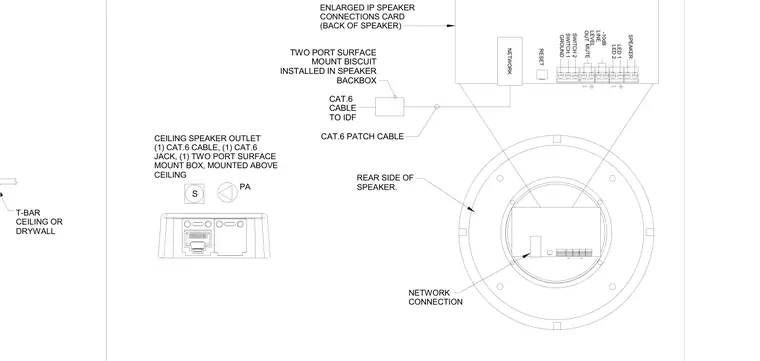

An IP ceiling speaker is connected via a CAT.6 patch cable to a two-port surface mount biscuit installed in the speaker backbox. A CAT.6 cable runs from the intermediate distribution frame to a ceiling speaker outlet containing one CAT.6 cable and one CAT.6 jack mounted above the ceiling. The rear side of the speaker connects to the enlarged IP speaker connections card with terminal blocks for ground, switches, line level out, LEDs, and speaker wiring. The entire assembly integrates with either a T-bar ceiling or gypsum wall construction.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
