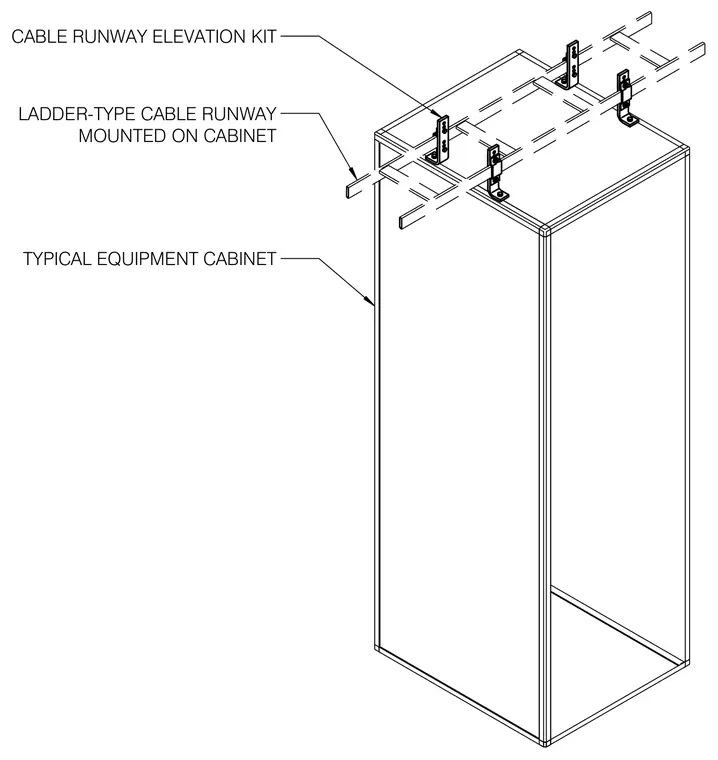

A ladder-type cable runway is mounted above the top of a typical equipment cabinet using a cable runway elevation kit. The mounting brackets secure the cable tray parallel to the top surface of the enclosure.
TYPICAL EQUIPMENT CABINET LADDER-TYPE CABLE RUNWAY MOUNTED ON CABINET CABLE RUNWAY ELEVATION KIT
