Structural · T-Y8MEX

Precast Insulated Panel Truss Seat and Connection Details

Materials

Steel

Elements

Trusses Insulation Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

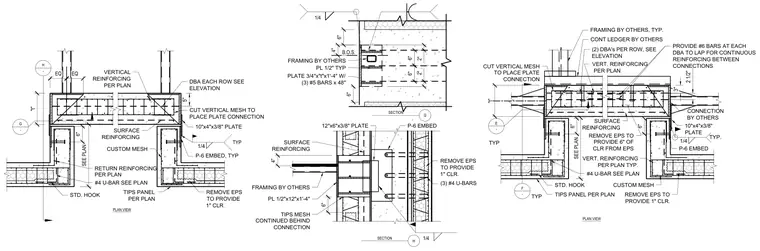

Precast insulated panel joint connection assembly featuring custom wire mesh and expanded polystyrene insulation removal to maintain specified clearances. Embedded steel plates, including a 10 inch by 4 inch by 3/8 inch plate designated P-6 and a 12 inch by 6 inch by 3/8 inch plate, anchor the structural framing to the panel. Vertical and surface reinforcing bars, along with number four U-bars and number five bars with standard hooks, provide continuous reinforcement across the joint. Additional anchorage is achieved using dowel bar anchors arranged in rows with lap splices per plan specifications.
