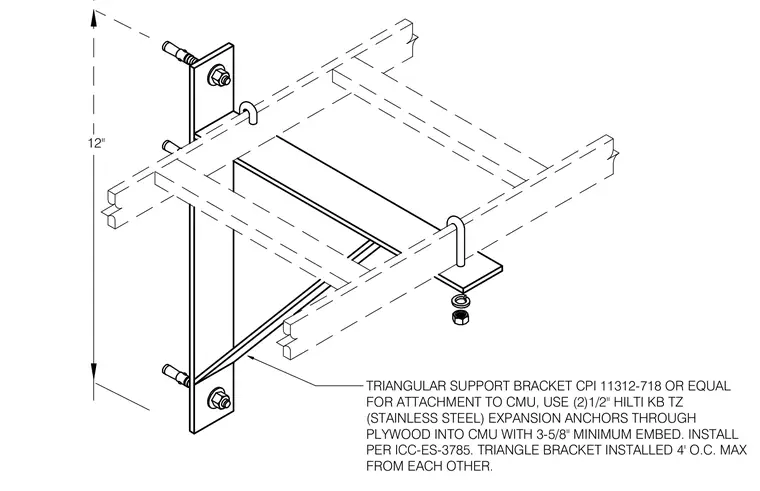

A triangular support bracket model CPI 11312-718 or equal secures cable runways to a concrete masonry unit wall. The assembly attaches through plywood into the masonry using two one-half-inch Hilti KB-TZ stainless steel expansion anchors with a three-and-five-eighths-inch minimum embedment depth installed per ICC-ES-3785. Triangle brackets are spaced at a maximum of four feet on center.
TRIANGULAR SUPPORT BRACKET CPI 11312-718 OR EQUAL FOR ATTACHMENT TO CMU, USE (2)1/2" HILTI KB TZ (STAINLESS STEEL) EXPANSION ANCHORS THROUGH PLYWOOD INTO CMU WITH 3-5/8" MINIMUM EMBED. INSTALL PER ICC-ES-3785. TRIANGLE BRACKET INSTALLED 4' O.C. MAX FROM EACH OTHER. 12"
