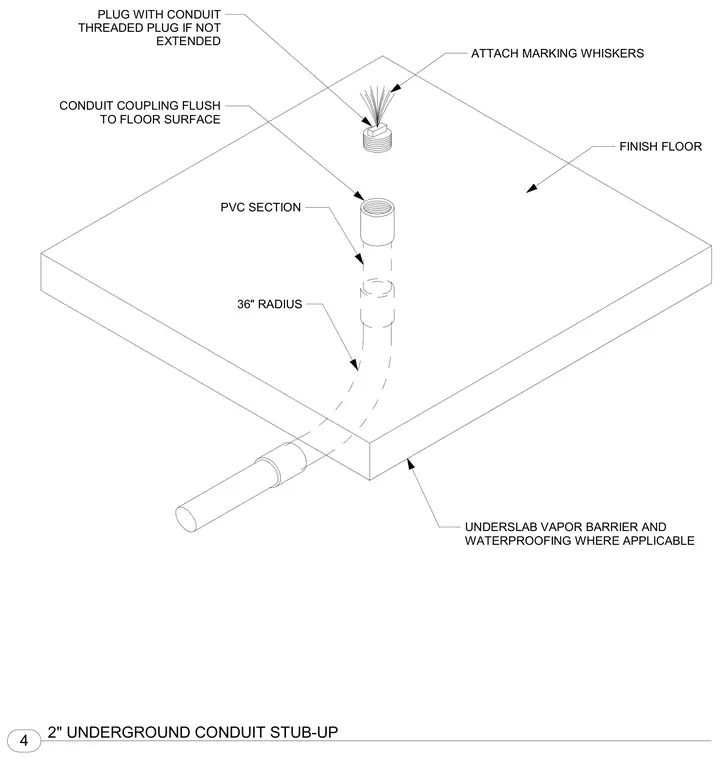

An underground two-inch PVC conduit transitions upward through a concrete slab with a thirty-six-inch radius bend. A conduit coupling sits flush to the finish floor surface and receives a threaded plug if the conduit is not immediately extended. Marking whiskers attach to the plug for identification, while an underslab vapor barrier and waterproofing are installed where applicable.
PLUG WITH CONDUIT THREADED PLUG IF NOT EXTENDED CONDUIT COUPLING FLUSH TO FLOOR SURFACE ATTACH MARKING WHISKERS FINISH FLOOR PVC SECTION 36" RADIUS UNDERSLAB VAPOR BARRIER AND WATERPROOFING WHERE APPLICABLE 4 2" UNDERGROUND CONDUIT STUB-UP
