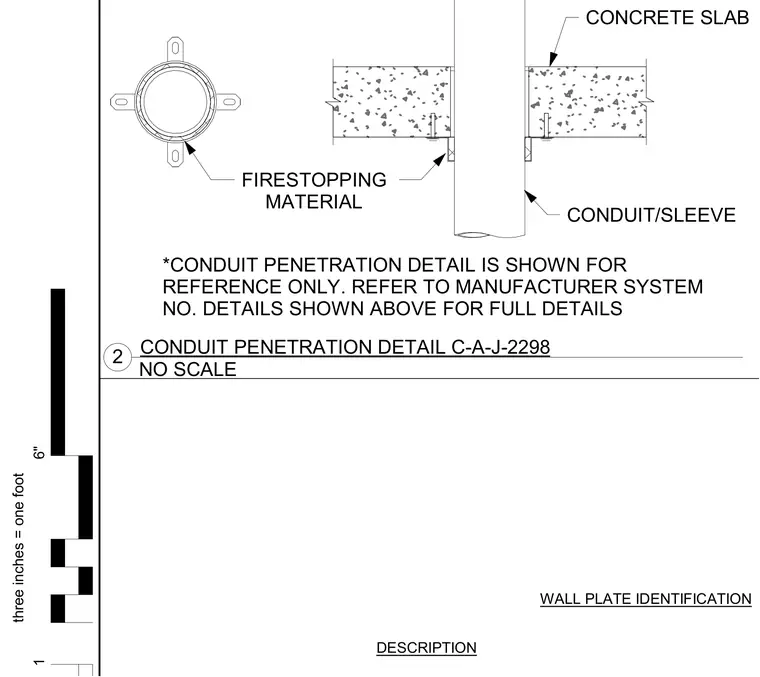

A conduit sleeve passes vertically through a concrete slab. Firestopping material seals the annular space around the conduit penetration at the underside of the slab. A circular wall plate or mounting bracket is secured around the sleeve. The conduit penetration detail is shown for reference only and requires coordination with the manufacturer system number.
WALL PLATE IDENTIFICATION DESCRIPTION CONCRETE SLAB CONDUIT/SLEEVE FIRESTOPPING MATERIAL *CONDUIT PENETRATION DETAIL IS SHOWN FOR REFERENCE ONLY. REFER TO MANUFACTURER SYSTEM NO. DETAILS SHOWN ABOVE FOR FULL DETAILS three inches = one foot 6" 1 NO SCALE 2 CONDUIT PENETRATION DETAIL C-A-J-2298
