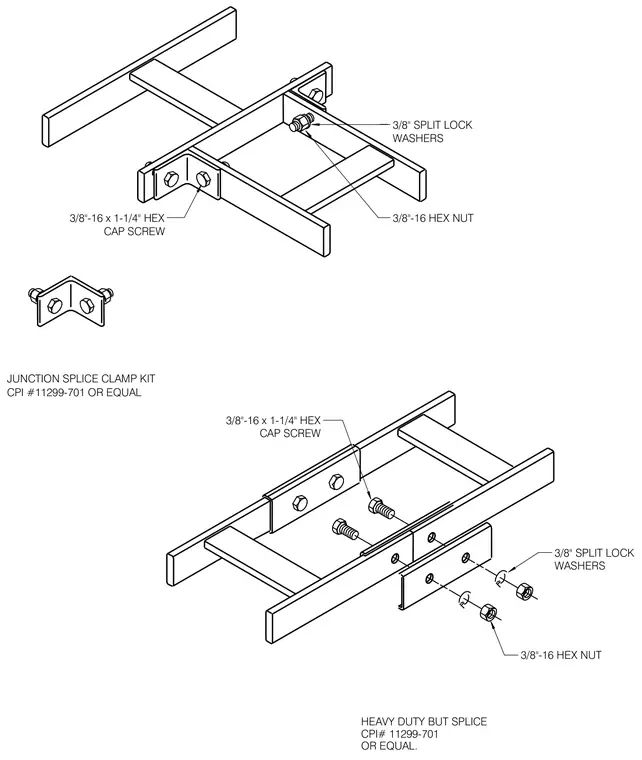

A junction splice clamp kit for telecommunications cable runways utilizes a heavy-duty butt splice model CPI number 11299-701 or approved equal. The assembly is secured using three-eighths-inch by sixteen threads per inch by one-and-one-quarter-inch hex cap screws, paired with three-eighths-inch split lock washers and three-eighths-inch by sixteen hex nuts. The components join cable runway sections together to maintain structural and electrical continuity in overhead cable tray distribution paths.
JUNCTION SPLICE CLAMP KIT HEAVY DUTY BUT SPLICE CPI #11299-701 OR EQUAL CPI# 11299-701 OR EQUAL. 3/8"-16 HEX NUT 3/8" SPLIT LOCK WASHERS 3/8"-16 x 1-1/4" HEX CAP SCREW 3/8"-16 x 1-1/4" HEX CAP SCREW 3/8" SPLIT LOCK WASHERS 3/8"-16 HEX NUT
