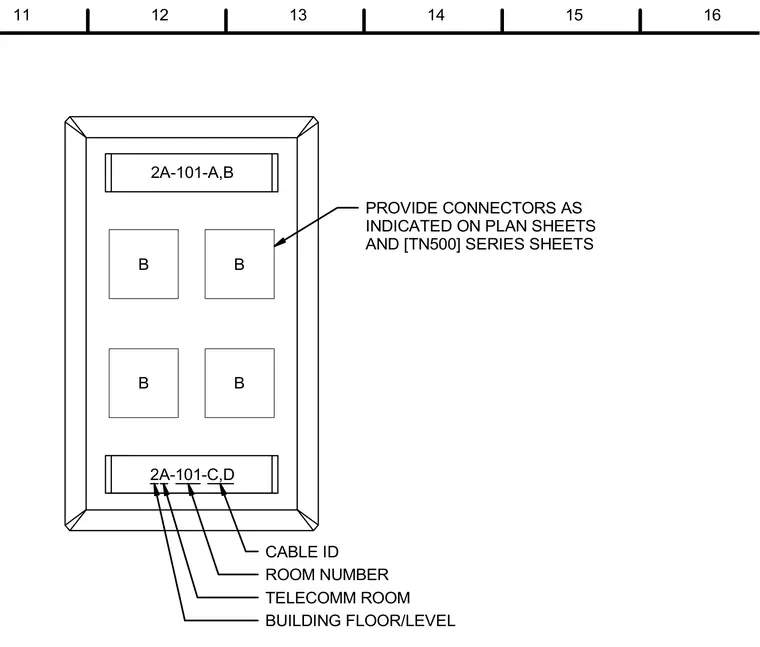

Telecommunications faceplate labeling includes designated text fields for cable identification, room number, telecommunication room, and building floor level. Connectors are provided as indicated on plan sheets and TN500 series sheets.
2A-101-A,B 2A-101-C,D CABLE ID ROOM NUMBER TELECOMM ROOM BUILDING FLOOR/LEVEL PROVIDE CONNECTORS AS INDICATED ON PLAN SHEETS AND [TN500] SERIES SHEETS B B B B 11 13 15 12 14 16
