Telecommunications Grounding and Bonding Diagram

Elements

About this detail

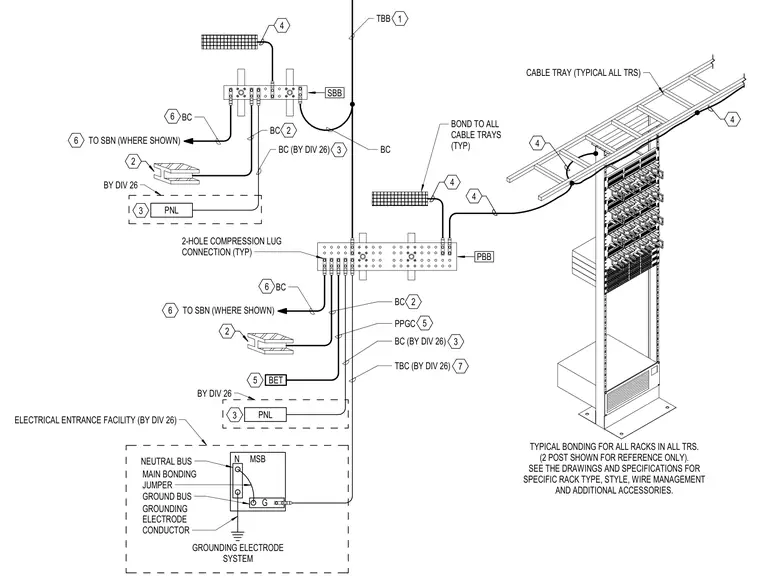

Telecommunications racks and cable trays are bonded to the primary telecommunications grounding busbar using two-hole compression lug connections and bonding conductors. The primary telecommunications grounding busbar connects to the secondary telecommunications grounding busbar, telecommunications main backbone, and the main switchboard grounding electrode system. Cable trays throughout the telecommunications room are tied into the bonding network with dedicated bonding jumpers. Grounding conductors extend from the electrical entrance facility including neutral bus, main bonding jumper, and grounding electrode conductor connections.
