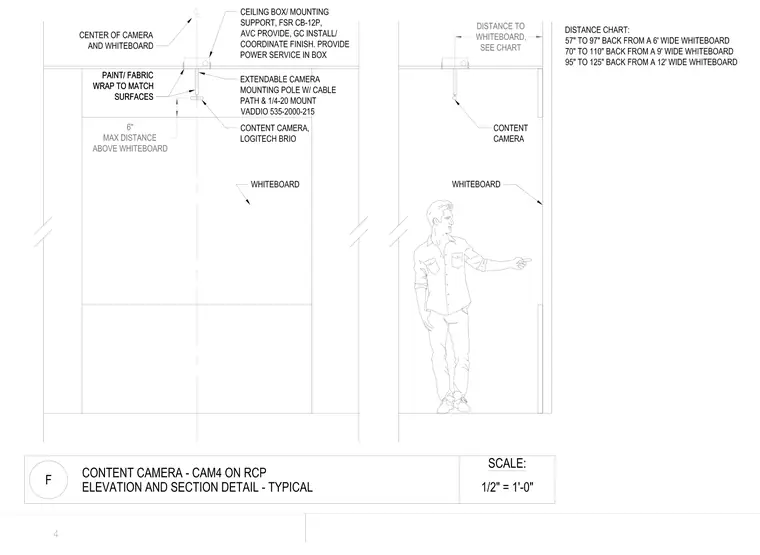

Ceiling-mounted content camera and support assembly installed above a whiteboard with specified clearances. The assembly includes an FSR CB-12P ceiling box and mounting support, a Vaddio 535-2000-215 extendable camera mounting pole with a one-quarter-twenty mount, and a Logitech Brio content camera. A paint or fabric wrap matches surrounding surfaces, and power service is provided in the box. Distance charts specify mounting offsets ranging from fifty-seven to one hundred twenty-five inches back based on whiteboard widths of six, nine, or twelve feet, with a maximum distance of six inches above the whiteboard.
