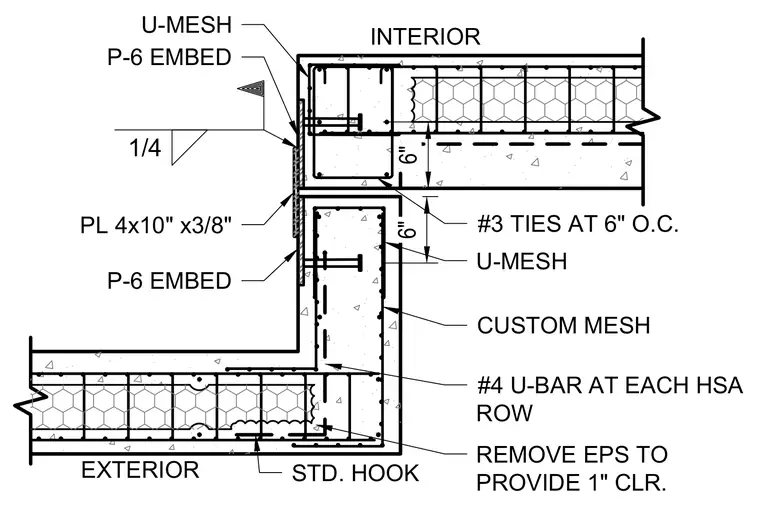

This structural precast concrete connection detail features a four-inch by ten-inch by three-eighths-inch embed plate welded with a one-quarter-inch fillet weld to P-6 embeds. Number four U-bars are placed at each HSA row with standard hooks, and expanded polystyrene is removed to provide a one-inch clearance. Additional reinforcement includes number three ties spaced at six inches on center, custom mesh, and U-mesh across the assembly.
EXTERIOR INTERIOR CUSTOM MESH U-MESH P-6 EMBED PL 4x10" x3/8" P-6 EMBED #4 U-BAR AT EACH HSA ROW STD. HOOK REMOVE EPS TO PROVIDE 1" CLR. U-MESH 1/4 6" 6" #3 TIES AT 6" O.C.
