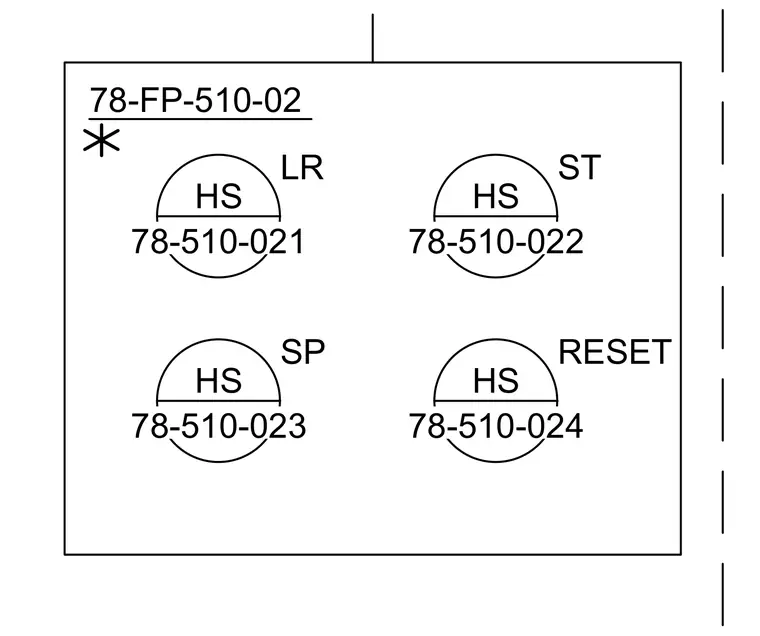

This telecommunications schematic displays four distinct device or circuit identification tags labeled HS 78-510-021 through HS 78-510-024 with associated designators LR, ST, SP, and RESET. The diagram is referenced under sheet number 78-FP-510-02.
