A heavy-duty junction splice kit connects intersecting ladder rack sections using carriage bolts, square washers, lock washers, and hex nuts. A number six grounding wire with ring terminals and screws bonds across the splice joint to maintain electrical continuity.

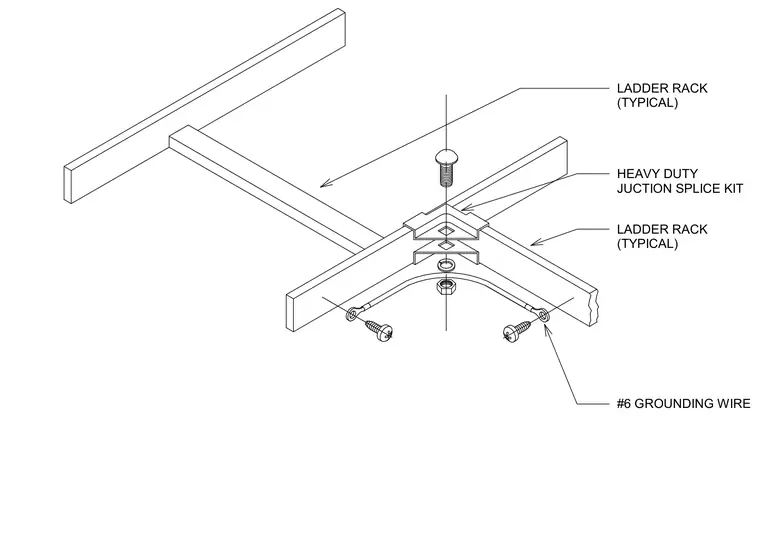

LADDER RACK (TYPICAL) HEAVY DUTY JUCTION SPLICE KIT LADDER RACK (TYPICAL) #6 GROUNDING WIRE
