Telecommunications · T-WT3Q3

Subsurface Enclosure Replacement Vault

About this detail

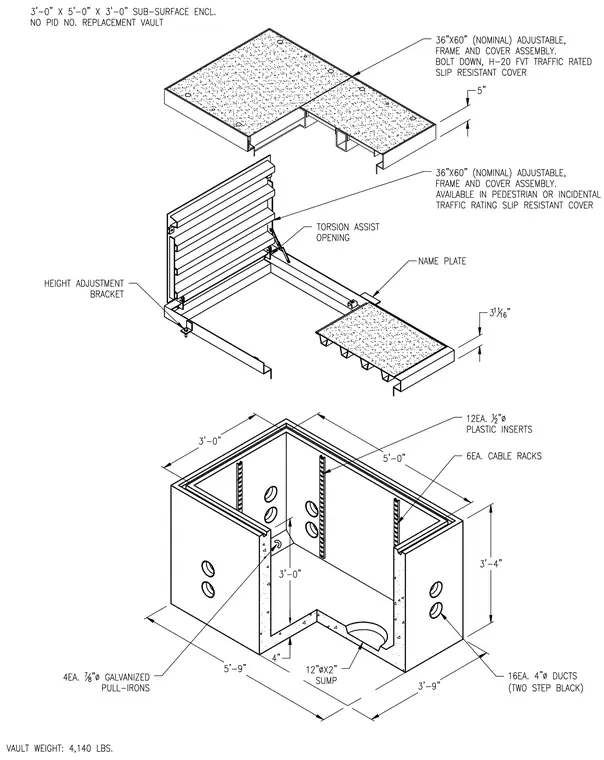

This sub-surface enclosure replacement vault measures 3 feet by 5 feet by 3 feet and features a 36-inch by 60-inch nominal adjustable frame and cover assembly with a bolt-down, H-20 FVT traffic-rated slip-resistant cover. The assembly includes a torsion assist opening, a height adjustment bracket, a name plate, and twelve 1/2-inch diameter plastic inserts. The concrete vault body includes six cable racks, four 7/8-inch diameter galvanized pull-irons, sixteen 4-inch diameter ducts in two step black configuration, and a 12-inch diameter sump. The total vault weight is 4,140 pounds.
