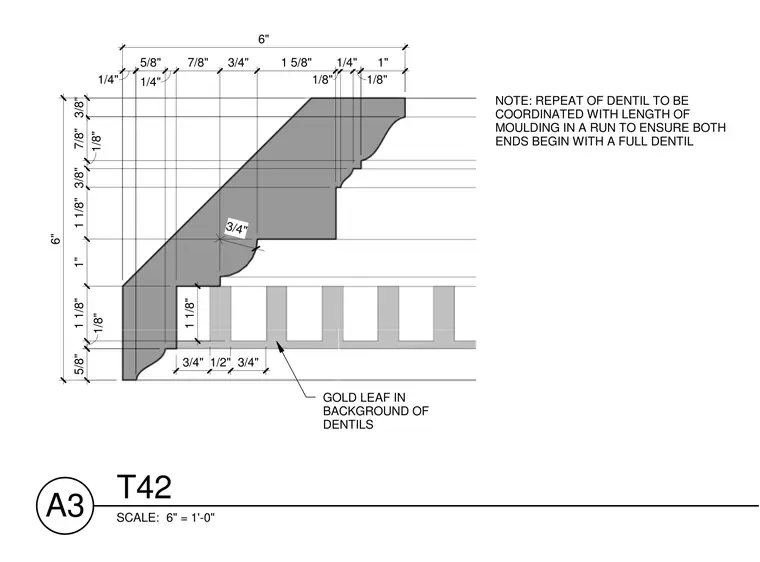

A decorative wood cornice features a repeating dentil pattern with specific dimensional coordination requirements. The overall profile measures six inches by six inches with detailed profiles including three-quarter inch and one-eighth inch reveals. Gold leaf is applied to the background of the dentils, and the moulding run must be coordinated to ensure both ends begin with a full dentil.
5/8" 1/4" 7/8" 3/4" 1 5/8" 1/8" 1/4" 1/8" 7/8" 1/8" 3/8" 1 1/8" 1" 1 1/8" 1/8" 3/4" 5/8" 3/8" 6" 1/4" 1" 6" 3/4" 1/2" 3/4" 1 1/8" GOLD LEAF IN BACKGROUND OF DENTILS NOTE: REPEAT OF DENTIL TO BE COORDINATED WITH LENGTH OF MOULDING IN A RUN TO ENSURE BOTH ENDS BEGIN WITH A FULL DENTIL SCALE: 6" = 1'-0" A3 T42
