T-WQ6RE — Extron Cable Cubby with Power and HDMI Module Detail

Telecommunications · T-WQ6RE

Extron Cable Cubby with Power and HDMI Module Detail

Elements

Connections / Plates

About this detail

An Extron Cable Cubby 1202 recessed enclosure houses an Extron AC and USB 314 US power module and an Extron HDMI pull-out patch cord with 4K resolution, HDMI 2.0, 18 Gbps capacity, and an ultra-flexible jacket. The architectural finish and color of the cubby are selected by the architect.

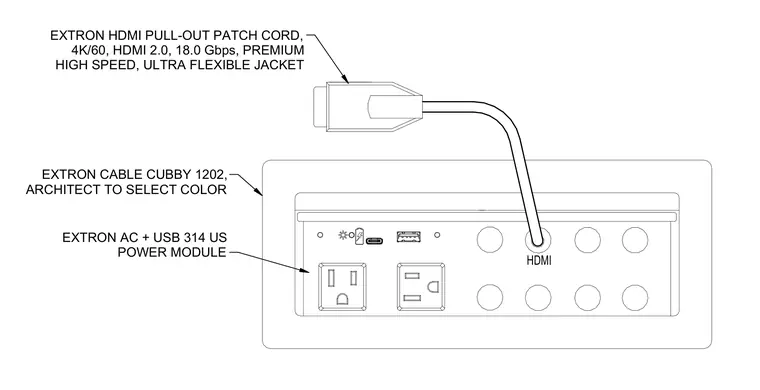

EXTRON CABLE CUBBY 1202, ARCHITECT TO SELECT COLOR EXTRON AC + USB 314 US POWER MODULE HDMI EXTRON HDMI PULL-OUT PATCH CORD, 4K/60, HDMI 2.0, 18.0 Gbps, PREMIUM HIGH SPEED, ULTRA FLEXIBLE JACKET

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
