Typical Telecommunications Outlet and Conduit Detail

Materials

Elements

About this detail

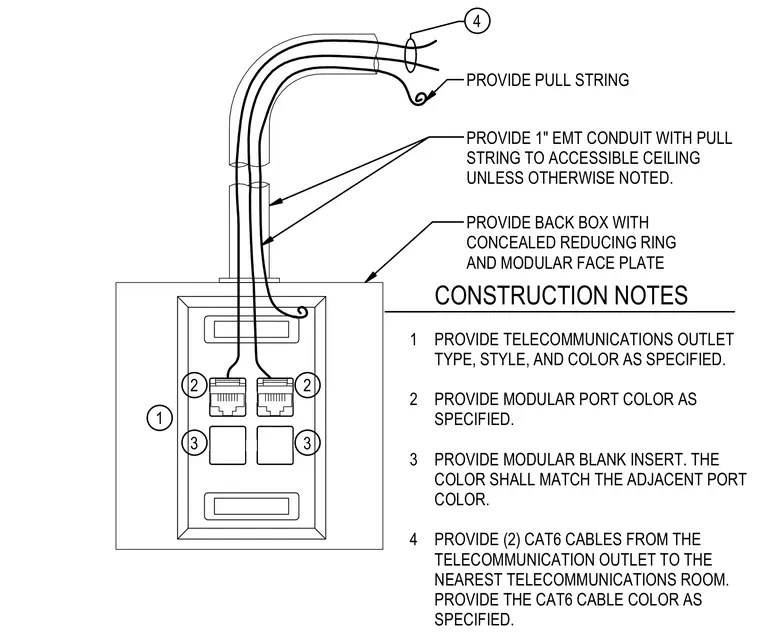

This assembly consists of a back box with a concealed reducing ring and modular faceplate connected to a one-inch electrical metallic tubing conduit routed to an accessible ceiling. Two Category 6 cables run from the telecommunications outlet to the nearest telecommunications room accompanied by a pull string. The faceplate includes specified telecommunications outlets, modular ports, and matching modular blank inserts.
