A copper ground bar is mounted to the wall via typical wall mounting brackets with specified size and hole configurations. The bar is isolated from the mounting brackets using 2700V insulators on each bracket. Fasteners include bolts and typical lockwashers to secure the assembly.

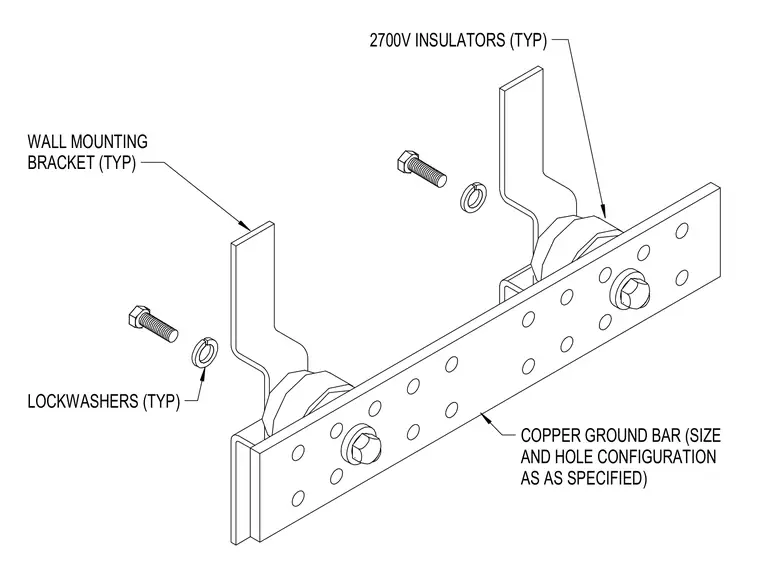

WALL MOUNTING BRACKET (TYP) LOCKWASHERS (TYP) 2700V INSULATORS (TYP) COPPER GROUND BAR (SIZE AND HOLE CONFIGURATION AS AS SPECIFIED)
