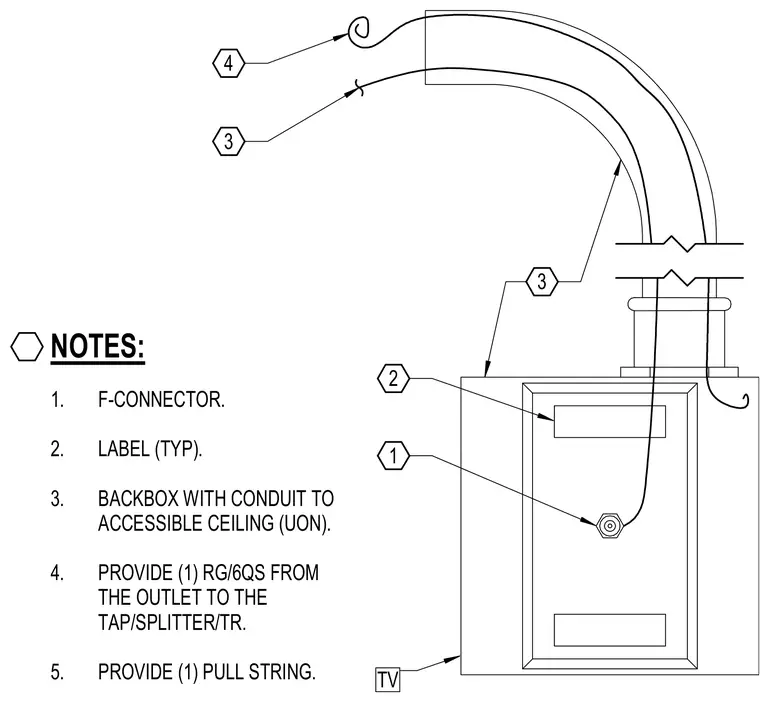

A television outlet backbox connects via conduit to an accessible ceiling unless otherwise noted, containing an F-connector and a typical label. One RG/6QS cable runs from the outlet to the tap, splitter, or telecommunications room, accompanied by one pull string.
TV 1. F-CONNECTOR. 2. LABEL (TYP). 3. BACKBOX WITH CONDUIT TO ACCESSIBLE CEILING (UON). 4. PROVIDE (1) RG/6QS FROM THE OUTLET TO THE TAP/SPLITTER/TR. 5. PROVIDE (1) PULL STRING. NOTES: 3 1 2 4 3
