Telecommunications · T-VRZ97

Double Door with Remote Strike Power

Elements

About this detail

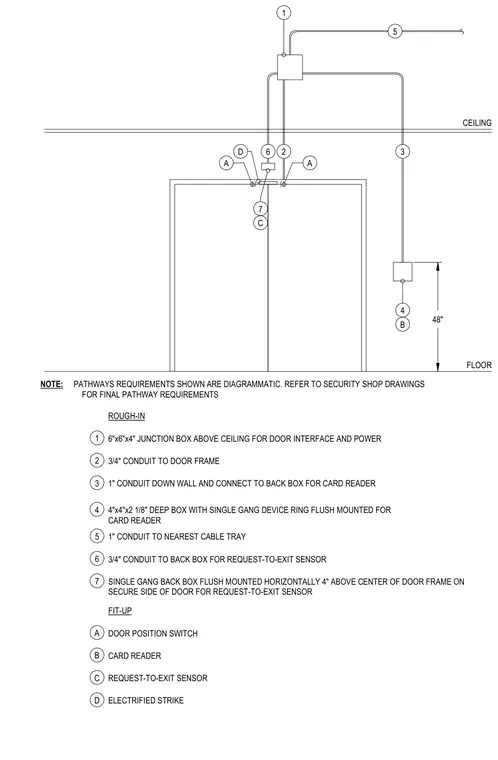

An access control rough-in layout for a double door features a six-by-six-by-four-inch junction box mounted above the ceiling for door interface and power, connecting via a one-inch conduit to the nearest cable tray. A three-quarter-inch conduit runs from the ceiling junction box to the door frame for the electrified strike. A one-inch conduit drops down the wall to a four-by-four-inch by two-and-one-eighth-inch deep back box with a single-gang device ring mounted forty-eight inches above the floor for a card reader. A three-quarter-inch conduit connects the ceiling junction box to a horizontally mounted single-gang back box located four inches above the center of the door frame on the secure side for a request-to-exit sensor. Fit-up components include a door position switch, card reader, request-to-exit sensor, and electrified strike. Pathways requirements are diagrammatic and subject to security shop drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
