IDF Cabinet Mounting Detail on CMU Wall

Materials

Elements

Walls Millwork / Casework Anchors / Embeds

About this detail

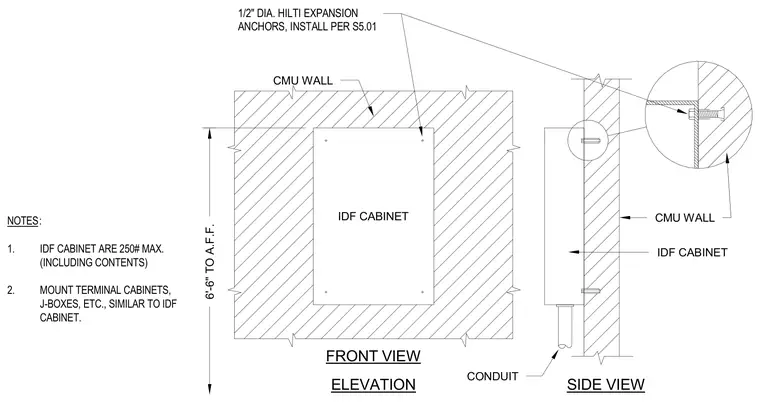

An intermediate distribution frame cabinet is mounted to a concrete masonry unit wall using half-inch diameter Hilti expansion anchors installed per structural specifications. The cabinet is positioned at six feet six inches to the top of the enclosure above the finished floor, with a maximum weight capacity of two hundred fifty pounds including contents. Terminal cabinets and junction boxes follow a similar mounting configuration. Conduit enters the bottom of the enclosure as shown in the side view.
