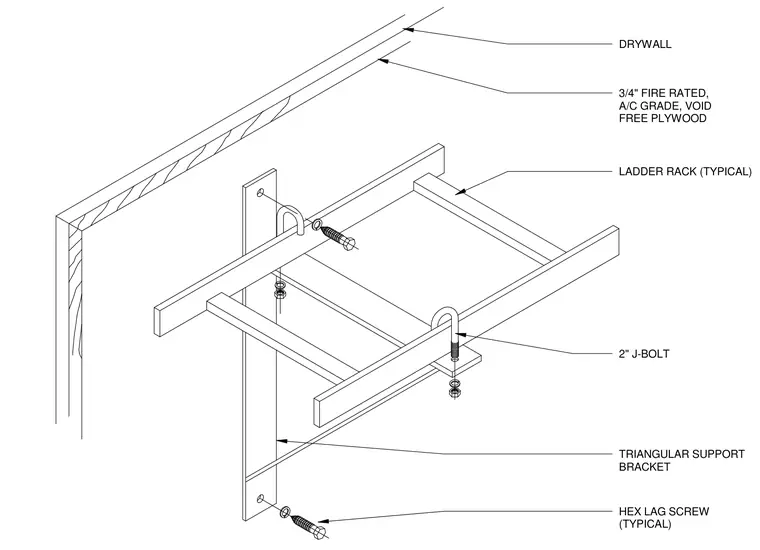

A typical wall-mounted telecommunications ladder rack is secured against a three-quarter-inch fire-rated, A/C grade, void-free plywood panel backed by drywall. A triangular support bracket is anchored to the wall assembly using typical hex lag screws with washers. The ladder rack is attached to the support bracket using two-inch J-bolts secured with nuts and washers.
DRYWALL 3/4" FIRE RATED, A/C GRADE, VOID FREE PLYWOOD LADDER RACK (TYPICAL) 2" J-BOLT TRIANGULAR SUPPORT BRACKET HEX LAG SCREW (TYPICAL)
