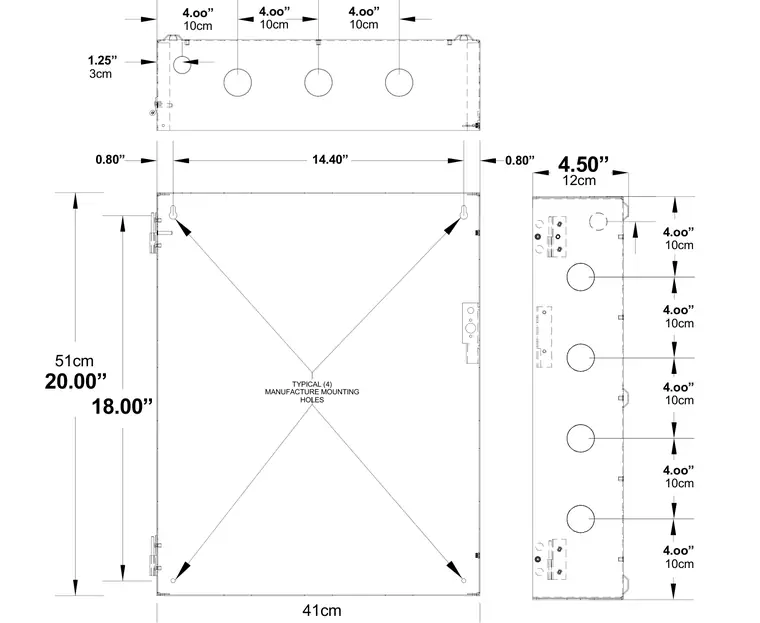

The telecommunications enclosure mounting detail shows a 20.00-inch high by 16.16-inch wide housing with a depth of 4.50 inches, featuring four typical manufacturer mounting holes arranged in a rectangular pattern spaced at 14.40 inches horizontally and 18.00 inches vertically. The top and side panels include knockouts spaced at 4.00-inch intervals. Overall dimensions and edge clearances are indicated across the top, bottom, and side elevations.
10cm 41cm 51cm 20.00” 4.50” 4.oo” 10cm 4.oo” 1.25” 10cm 4.oo” 10cm 4.oo” 10cm 4.oo” 10cm 4.oo” 10cm 4.oo” 10cm 4.oo” 12cm 3cm 18.00” 14.40” 0.80” 0.80” TYPICAL (4) MANUFACTURE MOUNTING HOLES
