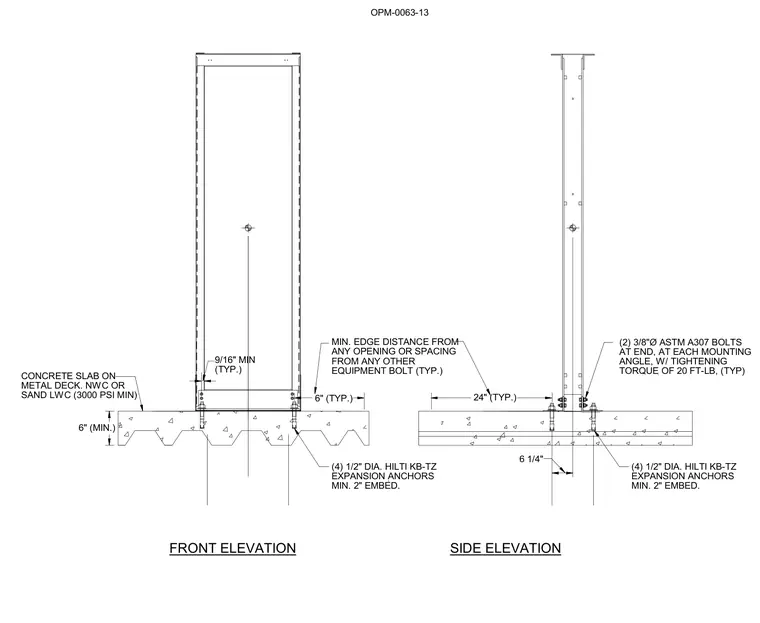

A two-post network equipment rack mounts to a concrete slab on metal deck using four half-inch diameter Hiliti KB-TZ expansion anchors with a minimum two-inch embedment at each base. The mounting angles attach to the rack using two three-eighths-inch diameter ASTM A307 bolts at each end tightened to a torque of twenty foot-pounds. The concrete slab consists of normal weight concrete or sand lightweight concrete with a minimum compressive strength of three thousand psi and a minimum thickness of six inches. Minimum edge distance from any opening or spacing from any other equipment bolt is twenty-four inches typical, with a minimum edge distance of nine-sixteenths of an inch.
(2) 3/8"Ø ASTM A307 BOLTS AT END, AT EACH MOUNTING ANGLE, W/ TIGHTENING 6" (MIN.) FRONT ELEVATION SIDE ELEVATION CONCRETE SLAB ON METAL DECK. NWC OR 6" (TYP.) 24" (TYP.) MIN. EDGE DISTANCE FROM ANY OPENING OR SPACING FROM ANY OTHER EQUIPMENT BOLT (TYP.) TORQUE OF 20 FT-LB, (TYP) 6 1/4" SAND LWC (3000 PSI MIN) 9/16" MIN (TYP.) OPM-0063-13 (4) 1/2" DIA. HILTI KB-TZ EXPANSION ANCHORS MIN. 2" EMBED. (4) 1/2" DIA. HILTI KB-TZ EXPANSION ANCHORS MIN. 2" EMBED.
