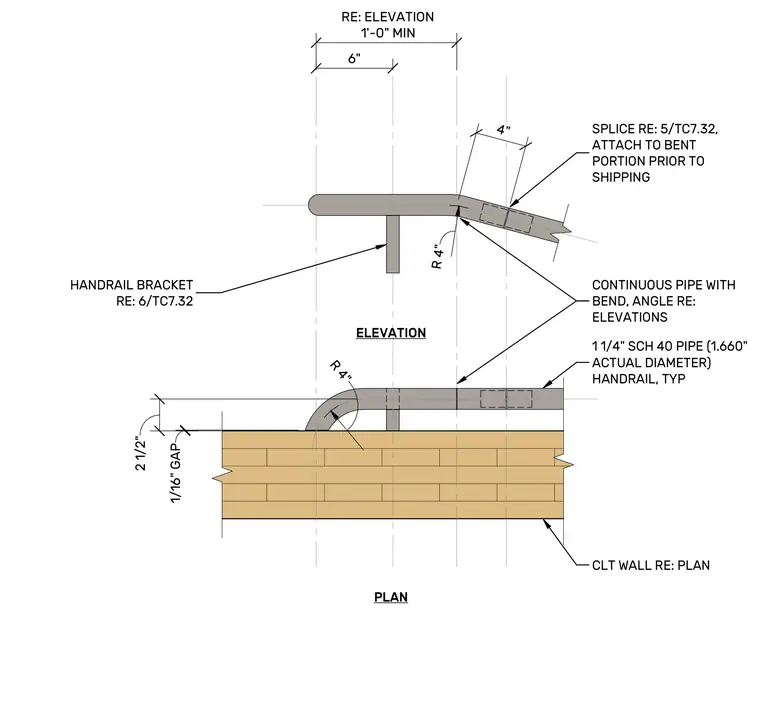

A one-and-one-quarter-inch Schedule 40 pipe handrail, measuring one point six six zero inches in actual outer diameter, connects to a cross-laminated timber wall via a handrail bracket. The continuous pipe features a bent return with a four-inch radius, maintaining a one-sixteenth-inch gap and a two-and-one-half-inch clearance from the wall assembly. A factory-attached splice joins the bent portion of the handrail prior to shipping. The assembly is detailed with a minimum one-foot extension and dimensions indicating a four-inch bend radius.
2 1/2" 1/16" GAP R 4" 6" RE: ELEVATION 1'-0" MIN R 4" 4" CONTINUOUS PIPE WITH BEND, ANGLE RE: ELEVATIONS SPLICE RE: 5/TC7.32, ATTACH TO BENT PORTION PRIOR TO SHIPPING HANDRAIL BRACKET RE: 6/TC7.32 PLAN ELEVATION 1 1/4" SCH 40 PIPE (1.660" ACTUAL DIAMETER) HANDRAIL, TYP CLT WALL RE: PLAN C 4 1 T 1 ---- II ----- 1 l ----- II ----- 1
