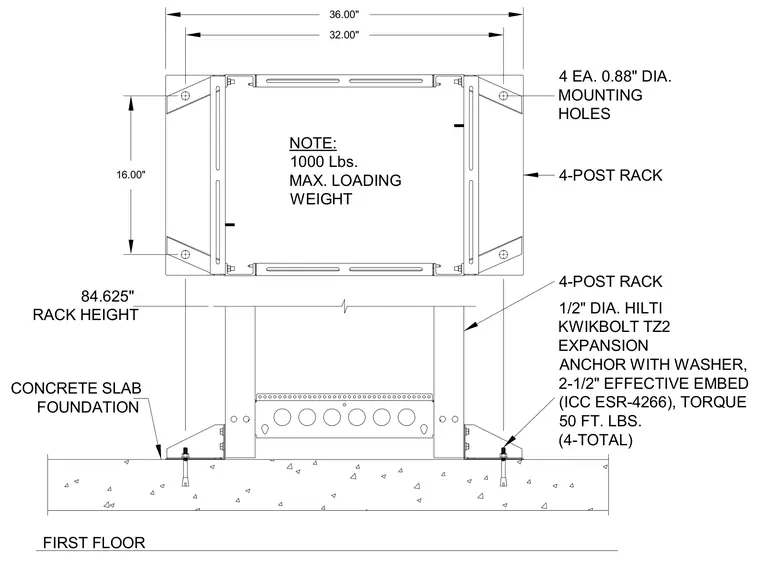

A four-post telecommunications rack stands on a concrete slab foundation at the first floor level. The rack features four mounting holes with 0.88-inch diameters, set within a footprint measuring 36 inches by 16 inches. Four 1/2-inch diameter Hilti Kwik Bolt TZ2 expansion anchors with washers secure the assembly to the concrete slab, requiring a 2-1/2-inch effective embedment depth and a torque of 50 foot-pounds. The rack stands at a height of 84.625 inches and supports a maximum loading weight of 1000 pounds.
16.00" 36.00" 32.00" 1/2" DIA. HILTI KWIKBOLT TZ2 EXPANSION ANCHOR WITH WASHER, 2-1/2" EFFECTIVE EMBED (ICC ESR-4266), TORQUE 50 FT. LBS. (4-TOTAL) 4-POST RACK 4-POST RACK 4 EA. 0.88" DIA. MOUNTING HOLES CONCRETE SLAB FOUNDATION NOTE: 1000 Lbs. MAX. LOADING WEIGHT 84.625" RACK HEIGHT FIRST FLOOR
