A flat panel display mounts to a wall using an included swing arm bracket secured at two locations with backing per 15/S101. The bracket fastens with four quarter-inch self-tapping screws at the top and bottom. A duplex 5-20R power receptacle and a CATV/communications outlet align behind the display within a coordinated zone. The assembly maintains a two-inch clearance for ventilation typically and supports a maximum weight of one hundred thirty pounds.

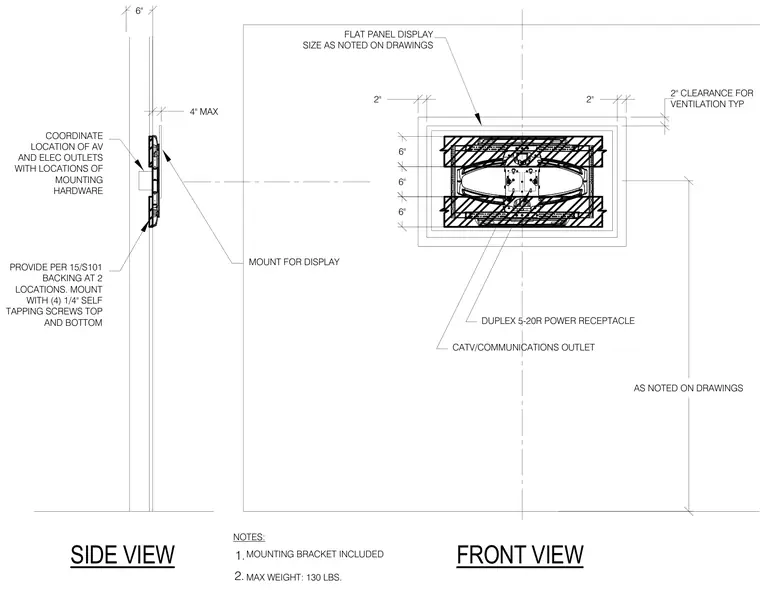

1. 2. 2" 2" 6" 4" MAX 6" 6" 6" AS NOTED ON DRAWINGS 2" CLEARANCE FOR VENTILATION TYP FLAT PANEL DISPLAY SIZE AS NOTED ON DRAWINGS MOUNT FOR DISPLAY PROVIDE PER 15/S101 BACKING AT 2 LOCATIONS. MOUNT WITH (4) 1/4" SELF TAPPING SCREWS TOP AND BOTTOM DUPLEX 5-20R POWER RECEPTACLE CATV/COMMUNICATIONS OUTLET COORDINATE LOCATION OF AV AND ELEC OUTLETS WITH LOCATIONS OF MOUNTING HARDWARE MOUNTING BRACKET INCLUDED MAX WEIGHT: 130 LBS. NOTES: SIDE VIEW FRONT VIEW
