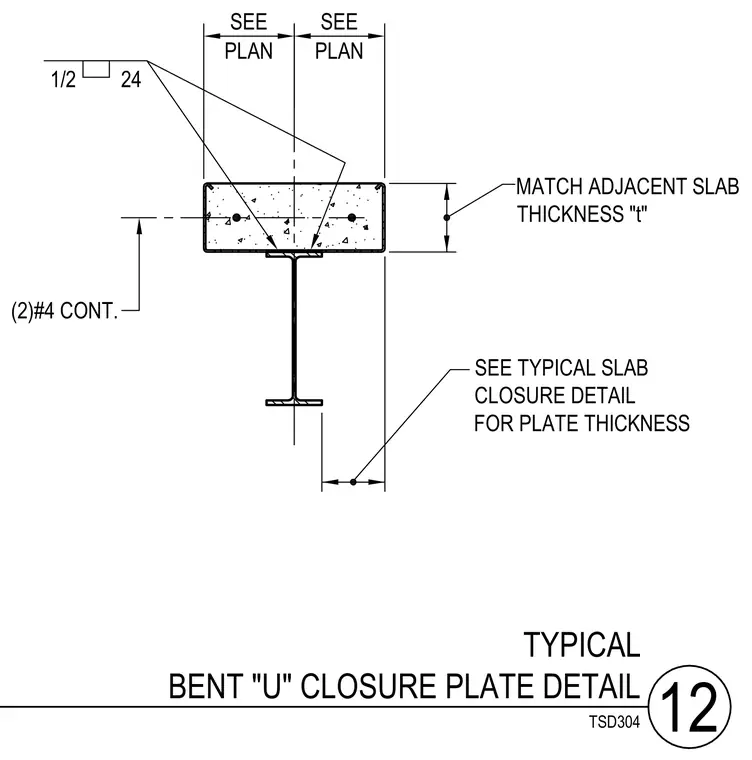

A bent u-shaped steel closure plate supports a concrete slab infill over a structural steel beam flange. The concrete slab thickness "t" matches the adjacent slab and contains two continuous number 4 reinforcing bars placed horizontally. The closure plate thickness is determined per the typical slab closure detail and welded to the steel beam top flange with a one-half inch fillet weld at a twenty-four inch spacing. Dimensions and positioning are sized per plan.
TYPICAL BENT "U" CLOSURE PLATE DETAIL 12 SEE PLAN SEE TYPICAL SLAB CLOSURE DETAIL FOR PLATE THICKNESS MATCH ADJACENT SLAB THICKNESS "t" (2)#4 CONT. 1/2 24 SEE PLAN TSD304
