Security Door Access Control and Conduit Rough-In Detail

Materials

Elements

About this detail

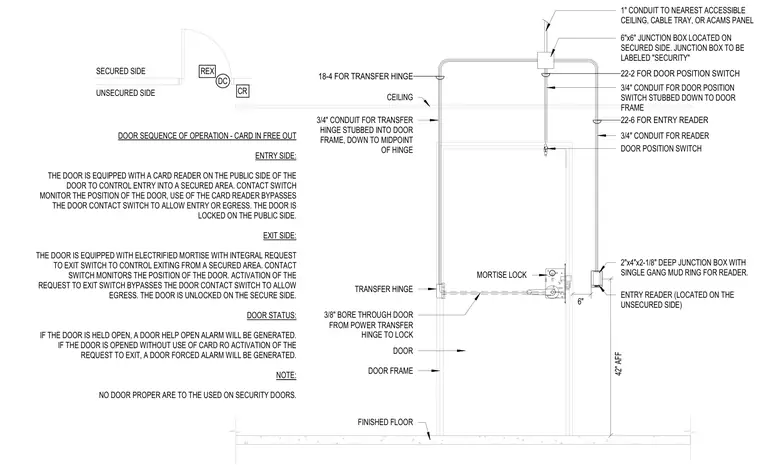

Security rough-in and access control provisions for a card-reader-controlled door consist of a three-quarter-inch conduit for the door position switch stubbing down into the door frame and connecting to a door position switch. A separate three-quarter-inch conduit runs to a two-by-four by two-and-one-eighth-inch deep junction box with a single-gang mud ring for the entry reader located on the unsecured side at forty-two inches above finished floor. A six-by-six-inch junction box labeled security is mounted on the secured side above the ceiling, routing a one-inch conduit to the nearest accessible ceiling, cable tray, or ACAMS panel. A transfer hinge connects to a three-quarter-inch conduit stubbed into the door frame down to the midpoint of the hinge, with a three-eighth-inch bore through the door from the power transfer hinge to the mortise lock.
