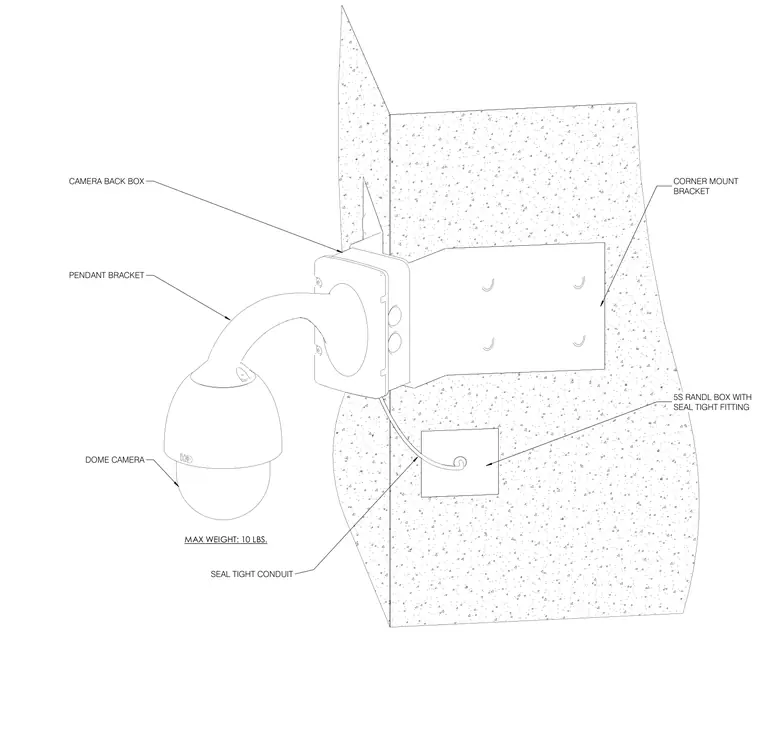

A corner mount bracket attaches to a building wall surface to support a square 5S Randl box. A camera back box mounts to the junction box, connecting to a curved pendant bracket that holds a dome camera. A seal-tight conduit routes from the Randl box to the camera assembly with a maximum weight capacity of 10 pounds.
DOME CAMERA PENDANT BRACKET CAMERA BACK BOX CORNER MOUNT BRACKET SEAL TIGHT CONDUIT 5S RANDL BOX WITH SEAL TIGHT FITTING MAX WEIGHT: 10 LBS.
