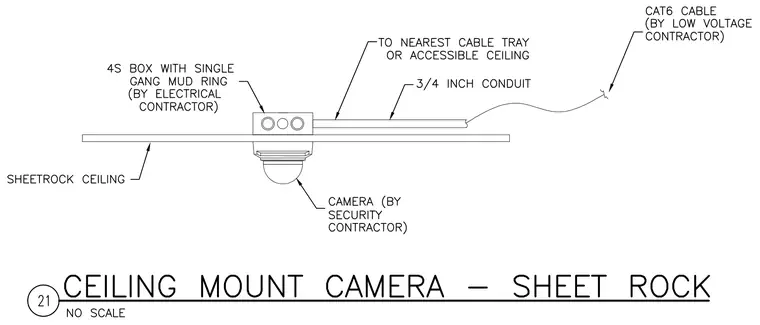

A security camera is mounted directly to a sheetrock ceiling and supported by a four-square electrical box equipped with a single-gang mud ring installed by the electrical contractor. A three-quarter-inch conduit extends from the box to the nearest cable tray or accessible ceiling space. A Category 6 cable runs through the conduit to the camera by the low voltage contractor.
