TIPS Wall Panel Joint and Splice Mesh Detail

Materials

Concrete

Elements

Walls Trusses Insulation Reinforcing Roof / Floor Openings

Connections

Welded Connection Rebar Splice / Development

About this detail

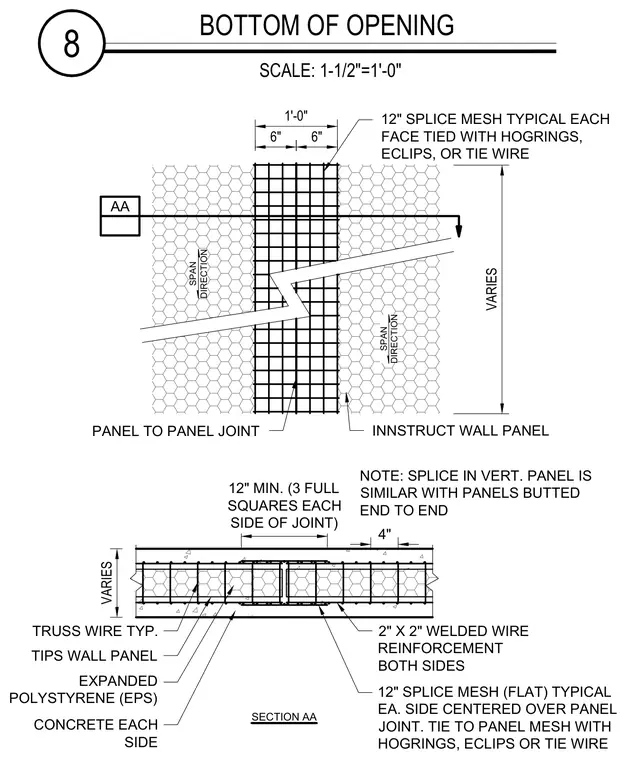

Two adjacent TIPS insulated concrete wall panels are joined at a panel-to-panel joint with a twelve-inch flat splice mesh centered over the joint on each face, tied to the panel mesh using hog rings, e-clips, or tie wire with a minimum of three full squares on each side. The wall assembly consists of concrete on each side of an expanded polystyrene core, reinforced with two-by-two-inch welded wire reinforcement on both sides and connected by typical truss wires. A vertical splice follows a similar configuration with panels butted end to end.
