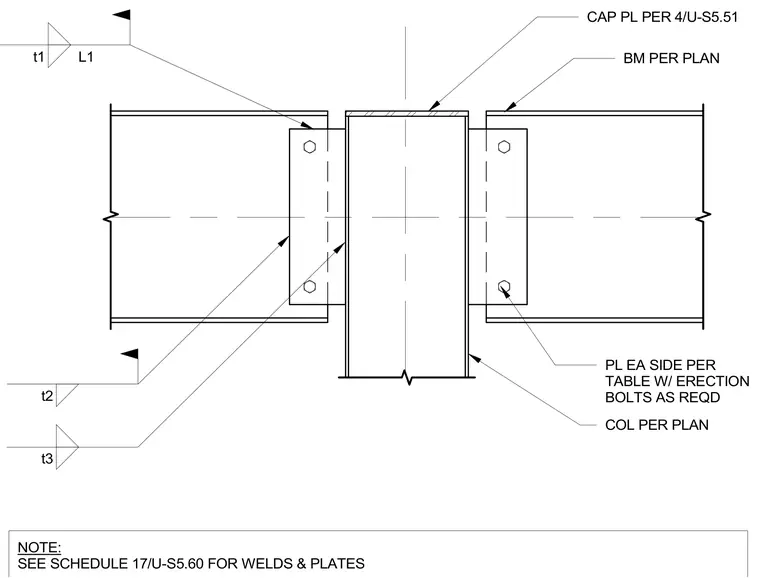

The assembly connects framing beams to a structural steel column using plates on each side sized per the structural schedule, secured with erection bolts as required, and capped with a plate per the referenced detail. Fillet welds join the connection plates and members according to the notes and schedule. A note directs the builder to consult the weld and plate schedule for specific welding and plate requirements.
t2 t1 L1 t3 BM PER PLAN PL EA SIDE PER TABLE W/ ERECTION BOLTS AS REQD COL PER PLAN CAP PL PER 4/U-S5.51 NOTE: SEE SCHEDULE 17/U-S5.60 FOR WELDS & PLATES
