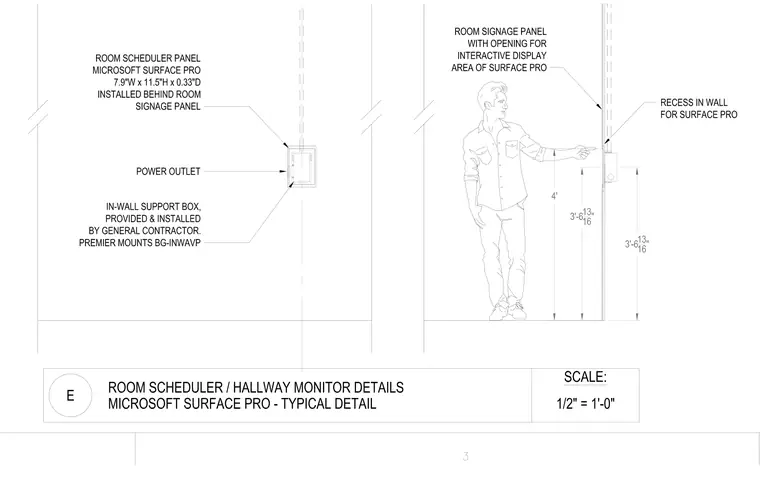

A room scheduler panel featuring a Microsoft Surface Pro measuring 7.9 inches wide by 11.5 inches high by 0.33 inches deep is installed behind a room signage panel. The assembly incorporates an in-wall support box model Premier Mounts BG-INWAVP provided and installed by the general contractor, along with a power outlet. A room signage panel includes an opening for an interactive display area of the Surface Pro, which is housed within a recess in the wall. The centerline of the unit is positioned at a height of 4 feet, with mounting heights dimensioned at 3 feet 6 and 13/16 inches from the finished floor.
