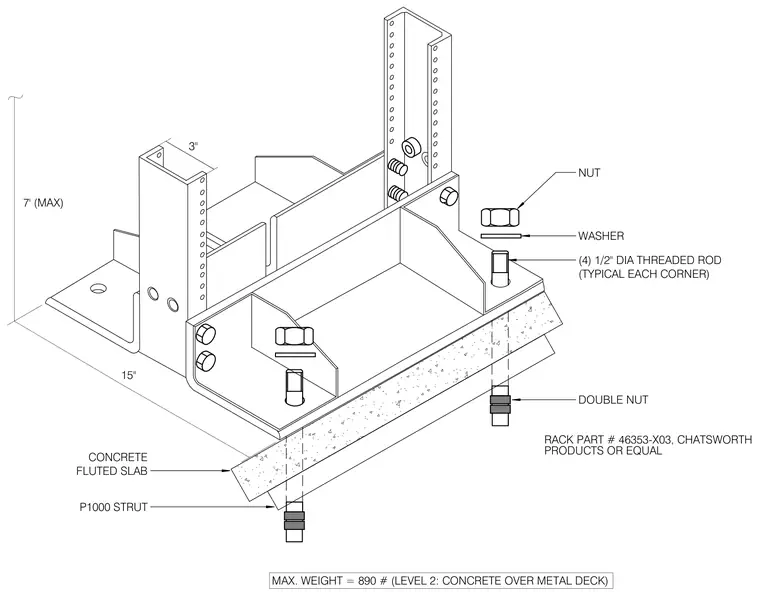

A two-post telecommunications equipment rack mounts to a concrete fluted slab over a metal deck. Four one-half inch diameter threaded rods secure each corner of the rack base using nuts, washers, and double nuts underneath. P1000 strut channels embedded in the assembly provide structural backing. The maximum weight capacity of the installation is eight hundred ninety pounds.
NUT WASHER 7' (MAX) 3" 15" RACK PART # 46353-X03, CHATSWORTH PRODUCTS OR EQUAL MAX. WEIGHT = 890 # (LEVEL 2: CONCRETE OVER METAL DECK) (4) 1/2" DIA THREADED ROD (TYPICAL EACH CORNER) CONCRETE FLUTED SLAB P1000 STRUT DOUBLE NUT
